Equipment introduction and use

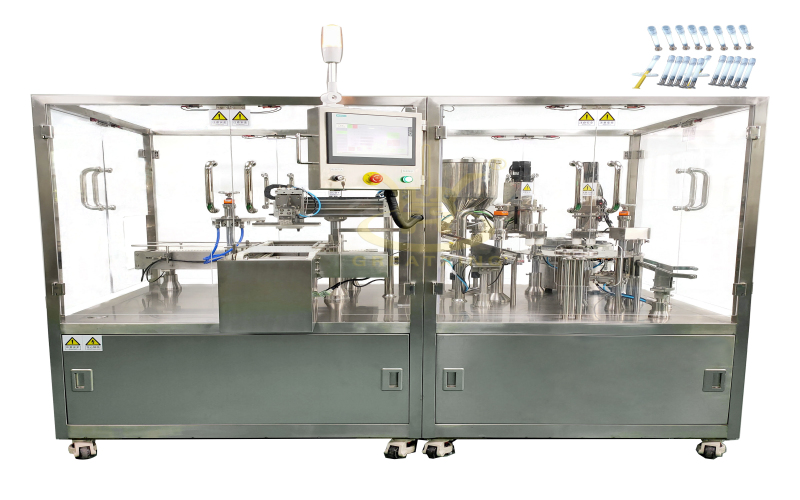

Automatic potting syringe vacuum filling barging machine is specially designed for pre potting glass syringe filling, is a kind of sterile, efficient filling syringes automated packaging equipment, it is mainly composed of conveying mechanism, institution, mechanical hand main wheel and the main transmission mechanism, vacuum servo filling system, the vibration plate automatic plug, vacuum servo stoppering system, no plug detection automatically removing mechanism, etc, adopt PLC programming control operation is simple. Production location link all have detection, which can realize the pipe does not reach the designated position is not turning, no tube no filling, eliminates automatically without the plug, and other functions. Filling machine has reasonable design, simple operation, high precision, high degree of automation, high production efficiency, stable performance of long period running, maintenance is convenient wait for a characteristic, the equipment technology can reach the advanced level of the domestic industry. Equipment is mainly made of high-quality stainless steel SUS304 material contact parts are made of high-quality stainless steel SUS316L high temperature resistant, can tear open outfit, beautiful and clean, easy to clean and disinfect, accord with national GMP production standards of pharmaceutical packaging equipment.
The characteristics of
1. Painted surface adopts SUS304 stainless steel material, contact material parts adopt SUS316L high quality stainless steel, in line with the GMP requirements;
2. Taken the product design and reasonable structure, high automation, stable running, low noise, easy maintenance;
3. Can be done to end this equipment sterile, achieving high requirement of clean production.
4. Painted ceramic piston pump to realize quantitative filling, resistant to acid and alkali erosion, wear-resisting, high temperature, 121 degrees Celsius, the sterilization, no wearing parts, high filling precision.
Technical parameters
| The serial number | Name | parameter |
1 | Applicable specifications | 1~3ml |
| 2 | Production capacity | 30 ~ 40 cigarettes/minutes |
| 3 | Filling accuracy | ≤±3% |
| 4 | Percent of pass | ≥99.5% |
| 5 | Electrical source | 220V 50Hz |
| 6 | Gas source | 0.5-0.8MPan |
| 7 | Work rate | 6.5kw |
| 8 | Machine net weight | ≈1200kg |
| 9 | Overall dimensions | L2150xW1100xH1800mm |
